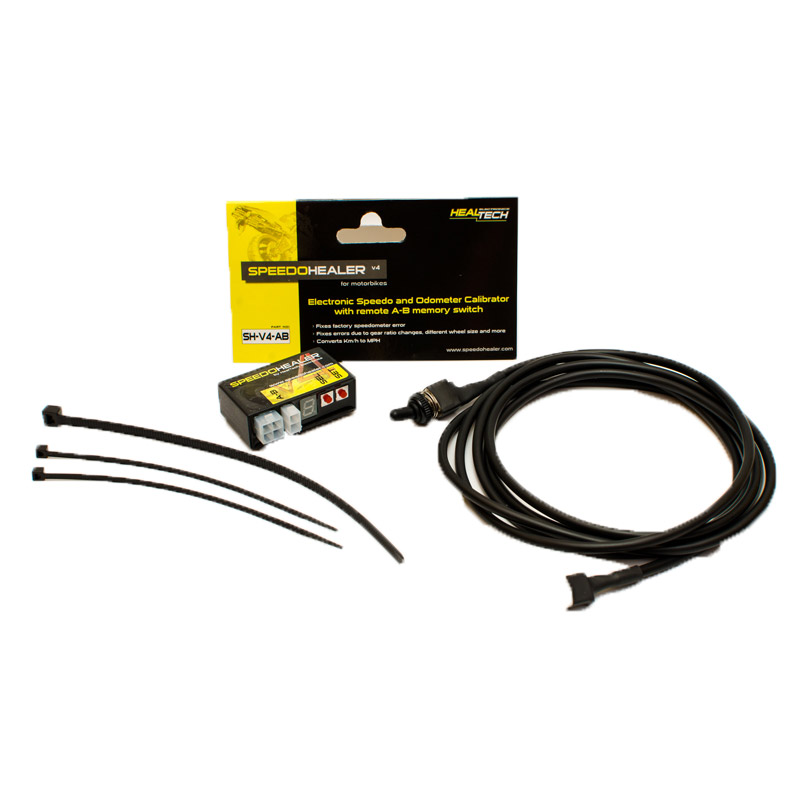

Healtech Sh-v4-ab Double Setting Control Unit

SH-V4-AB control unit with double setting, with setting selector, use with specific wiring.

Speedo Healer SH-V4 with max speed booster
3 functions in 1, it's a speed recalibrated.
On Japanese bikes, the odometers have large deviations, and if you change the pinion or crown, the deviation increases further.

The SpeedoHealer allows you to cancel the deviation of the digital odometer of the motorcycles and then display the correct speed. By recalibrating the speed, it allows you to eliminate the speed limitations in 6th gear on some Honda and Kawasaki motorcycle models.
Stores the maximum speed reached, which can be recalled via a button
Converts miles per hour to kilometers per hour and vice versa.
100% waterproof
Allows variations up to -99.9% to +9999.9% in 0.1% steps
Motorcycle-specific harnesses are sold separately from the ECU.

SpeedoHealer v4
New features:

New user interface: even easier to program, review and update stored parameters.
Extended calibration range
- capable of working even in special applications, such as different engine-instrument combinations, motorcycle engines mounted on cars, etc.
External detachable remote control button to recall the maximum speed values included as standard.
Cables with shielded black coating, which integrate aesthetically with the standard ones.
30% smaller and lighter unit
- the smallest recalibrator in the world.
Improved connector design
- takes up less space with connected cabling.
Allows you to store two independent calibration values and switch between them with the push of a button. Clear and visible confirmation of value in use. Useful for track-road use, when tire and wheel sizes or final ratios are changed. Also useful when used on the track to evade the speed limiter.
Allows you to review and activate/deactivate kmh/mph conversion by pressing a button.
Requires only 3 volts for operation
- thus simplifies installation on Yamaha motorcycles and other models.
Reduced consumption and automatic stand-by.
